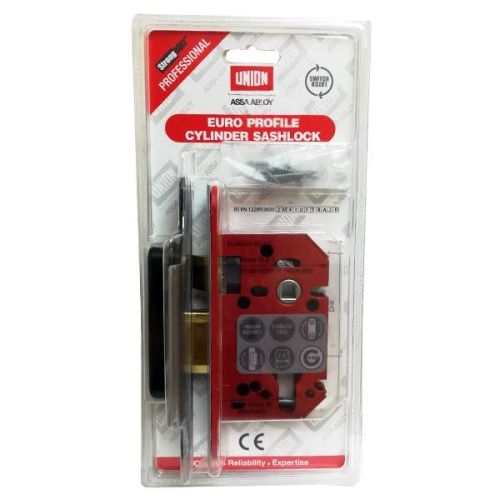

Union Assa Abloy Euro Profile Cylinder Sashlock - 2.5"

Union Euro Profile Cylinder Sashlock

Application:

• For timber doors hinged on the left or right
• Suitable for doors up to 54mm thick
• For use with an euro profile cylinder

Specification:

New features

• Easily reversible radius latch that uses the unique UNION SwitchLatch technology, No tools are needed, it's Time saving and Simple
• Anti rattle adjustable strike for on site fine tuning

• Radius plastic splinter guard for easy installation and a professional finish

• Anti-saw security features for resistance against attack
• Chamfered bolt design increases the performance of the lock under side load testing.
• Radius inner forend for ease of installation
• Deadbolt locked or unlocked by the cylinder key or turn
• 14mm deadbolt for secure positive deadlocking
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Hardened steel pins provide resistance to attack from sawing

• Case Size: 68mm (2.5")
• Backset: 45mm
• Case: Steel, red powder coat
• Forend: Stainless steel
• Striking Plate: Finished to match forend
• Faceplate: Supplied with square faceplate which covers a radius inner forend
• Deadbolt: Zinc with hardened steel rollers
• Latch Bolt: Zinc
• Suitable for use on 30 and 60 min fire doors
