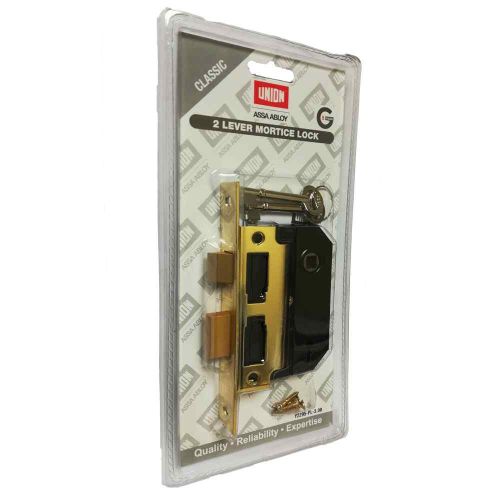

Union Assa Abloy 2 Lever Mortice Sash Lock - 3" Brass

Union Assa Abloy 2 Lever Mortice Sash Lock - 3" Brass

Application

• For timber doors hinged on the left or right
• Keys suitable for doors up to 54mm thick

Specification

• Deadbolt locked or unlocked by key from either side
• Latch bolt withdrawn by lever handle from either side
• Reversible latch bolt
• Two way action, suitable for lightweight knobs or sprung handles
• Not suitable for bolt through fixings
• Available with square forend and locking plate
• Case Size:  76mm (3")
• Backset:  57mm
• Case: Steel, black powder coat
• Forend: Brass finish
• Striking Plate: Finished to match forend
• Deadbolt: Aluminium
• Latch Bolt: Aluminium
• Follower: 8mm square
• Keying Groups: May be supplied to pass, differ & keyed alike with 2242.  Supplied with 2 zinc nickel plated keys.  NB: Not suitable for master keying
• Key blanks not sold separately
• Keying: 20 standard differs (M21H - M40H)

Finish

• PL - Polished Brass finish

Standards

• EN 1634-1 assessed for use on 60 minutes timber fire doors
